Sliding Door
Glazed panels on rollers — 80 mm Semi-Commercial or 100 mm Thermally Broken

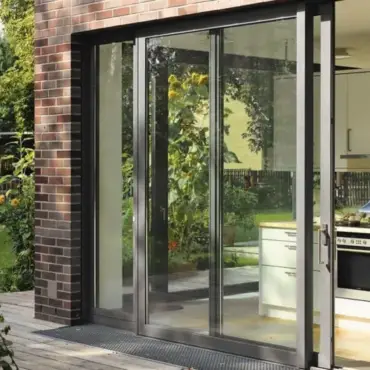

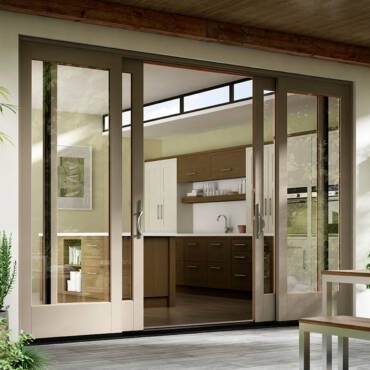

A sliding door is built from large glazed panels that glide along premium roller tracks — opening the room to the outside without a swing arc and without giving up floor space.
Available in the 80 mm Semi-Commercial Series (CWD80) for everyday residential builds, or the 100 mm Thermally Broken Windows (CWD100) when energy performance matters most.
- ●Sliding
- ●80mm (CWD80) · 100mm (CWD100)
- ●Double-Glazed Std.
- ●AS/NZS 2208
- ●CWD80 · CWD100
The difference is in the detail.
Seamless Indoor–Outdoor Flow
Wide glazed panels glide aside to merge living spaces with patios and decks — no swing arc, no lost floor space.
Maximum Natural Light
Slim sightlines and large glass apertures pull daylight deep into the room.
Multi-Point Locking
Robust SIEGENIA / Doric hardware with anti-lift catches — sliding doors made secure by engineering, not by accident.
Built to standard.
- Model
- CWD80 · CWD100
- Opening Style
- Sliding
- Profile Thickness
- 1.8mm – 2.0mm
- Profile Width
- 80mm (CWD80) · 100mm (CWD100)
- Glass Options
- 5mm + 12A + 5mm / 6mm + 12A + 6mm tempered
- Glass Standard
- AS/NZS 2208
- Extrusion Profile
- 6063-T5 Aluminium (CWD100: thermally broken)
- Standard Hardware
- Door roller hardware — Doric (AU) / SIEGENIA (DE)
Glass Types
- Tempered
- Toughened
- Coated
- LOW-E
Glass Colours
- Clear
- Grey
- Blue
- Green
- Custom
Profile Colours
- Matt Black
- Monument
- White
Flyscreen Options
- Aluminium
- Fiberglass
- Stainless Steel
- Waterproof
- Heat / Cold resistance
- Soundproof
- Wind resistance
- Airtight
- Safe
Residential · Commercial · Hospitality · Healthcare · School · Municipal
Two series to choose from
80 mm Semi-Commercial Series (CWD80) — a standard aluminium frame on an 80mm profile. Cost-effective for most residential and semi-commercial installs.
100 mm Thermally Broken Windows (CWD100) — a 100mm frame with a reinforced polyamide thermal break. Higher energy performance, helps meet NCC 7-star requirements.
For specifiers & builders.
Cross-section and installation detail sheets for both frame series. PDF — open in a new tab.
